Nesis IV is a cutting-edge navigation, flight, and engine monitoring system designed for ultralight airplanes, autogyros, and helicopters. As part of the Nesis avionics family, it features a self-contained, state-of-the-art EFIS optimized for ultralight aircraft. This latest model comes with a 10.1-inch display and the versatile Kliky control unit, which can be mounted anywhere for maximum convenience.

Technical Specifications

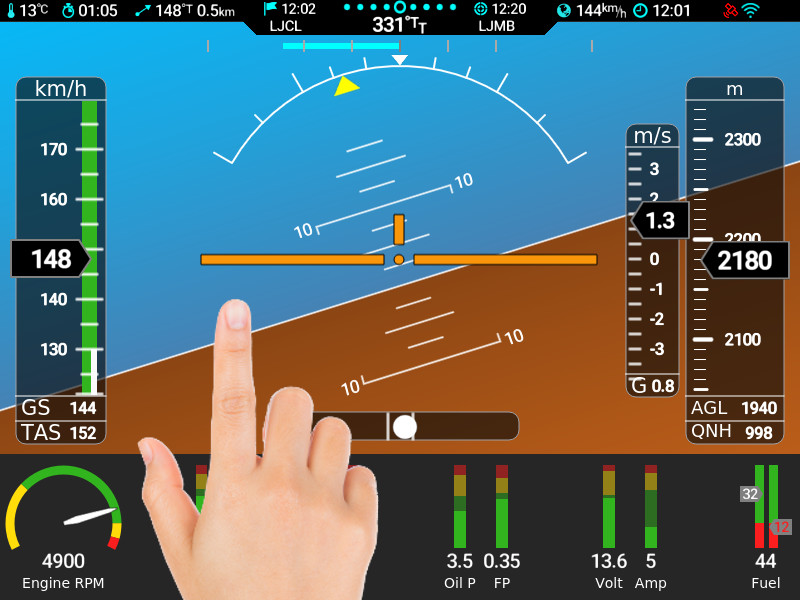

– Display: 10.1″ sunlight-readable touchscreen
– Dimensions: 260 x 160 x 45 mm
– Weight: Approximately 1,080 g
– Power Consumption: 1,200 mA at 12 V
– Processor: Fast multicore for smooth operation
– Cooling: Passive (no fans required)
– Built-in Modules: AD-AHRS-GPS for attitude, heading, and navigation

Key Features
– Customizable Interface: Editable layout with personalized logbook
– Engine Monitoring: Real-time EMS compatible with various engines via DAQU or mini DAQU units
– Connectivity:
– Wi-Fi for METAR, map, and software updates
– USB tethering support
– NMEA output
– Navigation Aids:
– 3D terrain visualization
– Multiple map support including vector and raster charts
– Flight planning capabilities
– Traffic Awareness: Supports FLARM and ADS-B (GDL 90) for traffic display
– Additional Inputs:
– Integrated video input
– Radio support
– User Tools:
– Interactive pilot checklists with visual and audio guidance
– Approacher app for VFR approach maps
– Integrated SD card slot for data management
